AMD EPYC™ 7002 Series Processor (Rome)
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
- Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
- Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture
- Supporting PCIe® 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0
- Embedded security protection to help defend your CPU, applications, and data
2X PerformancePer Socket & IO Bandwidth
vs AMD EPYC Naples
4X Floating PointPer Socket
vs AMD EPYC Naples
G482-Z54 Product Overview
G482-Z54 System Block Diagram
High Density HPC
Supports 8 x PCIe® 4.0 Computing Cards
The G482-Z54 is one of the world’s first PCIe® 4.0 GPU server systems to be released to the market, featuring support for up to eight dual-width PCIe 4.0 GPU cards (with each GPU connected directly to the processor via PCIe root). It is ideal to integrate an “AMD on AMD” solution using 2nd Gen AMD EPYC™ processors together with the newly unveiled AMD Instinct™ MI100 GPU accelerators that are tailored to deliver optimal system level performance in HPC and Machine Learning workloads supported by use of the AMD Infinity Fabric™ technologiesy.
PCIe® 4.0 Ready
AMD EPYC Rome is ready to support PCIe® 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMD’s Radeon MI50 GPGPU.
* The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
Higher Memory Speed
AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)
Get the Memory Performance Edge
3200Mhz Even at 2 DIMMS Per Channel
On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!
* Enabled via BIOS setting (“UMC Common Options” “DDR4 Common Options” Configure “Enforce POR” setting). Please follow product QVL. Please consult your GIGABYTE sales or technical representative for more information.
Max TDP Support
GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP)
Data Security
TPM 2.0 Module
GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM – discrete cryptographic on-board processors).
Carefully Selected Components
GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.
Design Features for Easy Maintenance
GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!

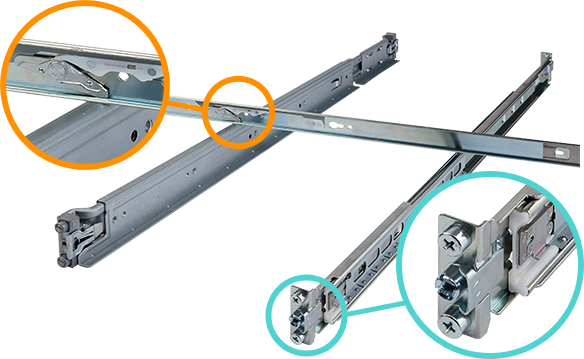

Tool-less Rail Kits
Rail kits attach to the side of the server chassis via clipping mechanism.

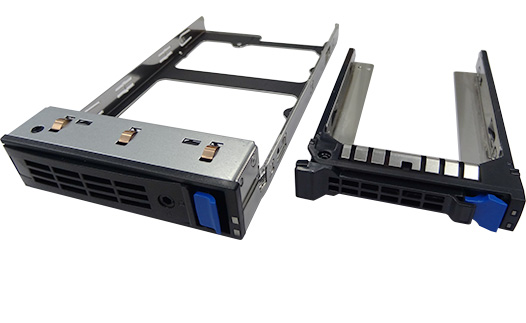

Tool-less 2.5” & 3.5” Drive Bays
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Efficient, Reliable Power Supply
GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
Intelligent Power Management Features
SCMP (Smart Crises Management / Protection)
SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.
System Loading Curve
GIGABYTE Management Console
GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.
- RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
- Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
- Detailed FRU information from SMBIOS
- 10 to 30 seconds pre-event automatic recording function
- SAS / RAID controller monitoring function
GIGABYTE Server Management (GSM)
GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:
- GSM Server
A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC. - GSM CLI (GBT Utility)
A command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC. - GSM Agent
A software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
*GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware. - GSM Mobile
A remote server management mobile APP, available for both Android and iOS. - GSM Plugin
A plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.
Automatic Fan Speed Control
To achieve the best cooling and power efficiency, GIGABYTE servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to CPU, DIMM, M.2, HDD, and GPU temperature sensors. When BMC detects a temperature change at a particular location, the corresponding fan speed will be changed accordingly.
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate the joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
Support Various Computing Accelerators
GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

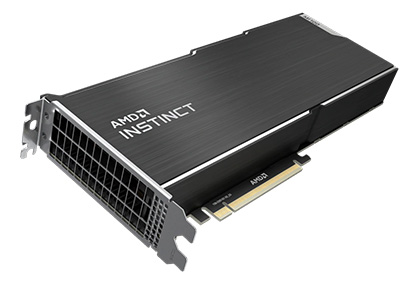

AMDGPU Accelerator

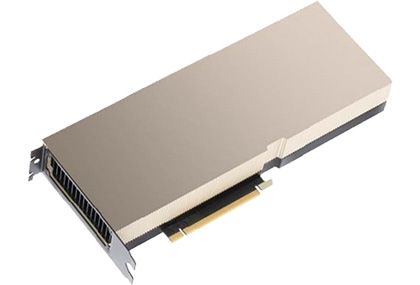

NVIDIAGPU Accelerator

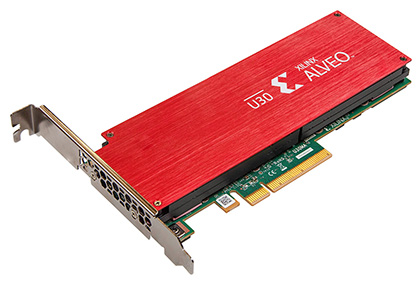

XILINXFPGA Accelerator

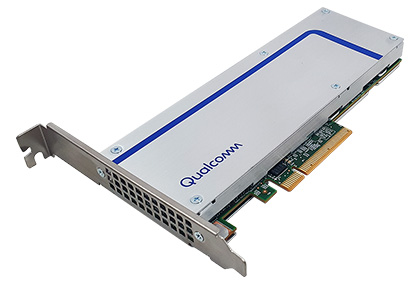

QualcommASIC Accelerator
NVIDIA-Certified
Complex AI workloads, including clusters, are becoming more common and system integrators and IT staff must quickly adapt to the changing technology. In order to improve system compatibility and confidence, NVIDIA has introduced the NVIDIA Certified Program that validates servers based on hardware and NVIDIA NGC Catalog’s software. Currently the NVIDIA Certified systems focus on NVIDIA Ampere architecture and NVIDIA Mellanox network adapters, but the program will expand. As well, customers that are familiar with NVIDIA NGC Support Services can use the services for NVIDIA Certified.
NVIDIA® NGC™ Ready Server
NGC (NVIDIA GPU Cloud) is an online, free to use platform which features GPU accelerated containers, a container registry and software for deploying and running these containers. New NGC containers are published monthly and offer the latest features and superior performance on NVIDIA GPUs, can be used with multi-GPU & multi-node systems for scale-up & scale-out environments, and feature support for Docker & Singularity runtimes as well as VMware vSphere.
Supercharged with NVIDIA V100 or T4 GPUs, this GIGABYTE server has been fully validated and is ready to be used with NGC. NGC containers can be quickly and easily deployed onto this server to run GPU-accelerated workloads for deep learning, machine learning, and HPC. NGC takes care of all the plumbing so data scientists, developers, and researchers can focus on building solutions, gathering insights, and delivering business value.
Being NGC Ready gives data center managers the confidence to deploy this server knowing that it can be quickly set up to excel at a wide variety of CUDA-X accelerated applications. Optional direct enterprise grade support is also available from NVIDIA to further ensure peace of mind.
